Perfect safeguards are incorporated in design against water and
power failures, and also to keep the reaction temperature well under
control.
NITROUS
OXIDE at room temperature and atmospheric pressure is a colorless
gas with a barely perceptible sweet odor and taste. It is non-flammable
but will support combustion. At higher temperature nitrous oxide
decomposes into nitrogen and oxygen. Nitrous oxide is moderately
soluble in water, alcohol and oils. N2O, also known as
laughing gas finds its use as anesthetic agent. So far this has
become a standard anaesthetic agent world over and medical operations
are performed with the help of this gas. There are other uses of
nitrous oxide which have been developed in food, cosmetics and electronic
industry, for example it has become a good whipped cream propellant.
This has become a propellant for high quality perfumes and cosmetics.
It is used for Cryosurgery. Nitrous oxide as an oxide gas for atomic
absorption in spectrophotometer and as fuel oxidant for racing vehicles.
The
slight oxidizing property of N2O is used for ‘etching’
microchips. This application is now consuming upto 30% of all the
nitrous oxide produced in Korea and Japan. With the increase in
standard of living of third world countries nitrous oxide consumption
is bound to increase.
|
 |
| |
 |

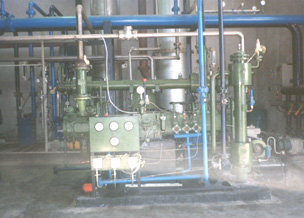

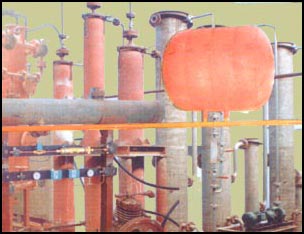

nitrous oxide
gas plant, anaesthetic gas plant |
|
| Chemical formula |
N2O |
| Molecular weight |
44.0128 |
Specific volume
at 15°C and 1 atm |
0.533m3/kg |
Specific gravity
(air=1)
|
1.5297 |
Density
at 15°C and 1 atm |
1.877kg/m3 |
Specific heat
at 15°C and 1 atm |
|
| Cp |
0.866kj/kg (°C) |
| |
|
| |
 |
| Purity
is minimum 99.9% and it very well meets the European and American
Pharmaceutical standards. |
|
 |
| For
25 kg and 50 kg/hr plant |
|
NH4NO3
|
2.1kg/kg
of N2O produced |
| Electrical
Power |
0.5kw/hr
of N2O produced
|
|
|
+/- 1% is depending on local
conditions & equipment.
|
|
Water
|
0.4%m3/kg
of N2O produced |
| Labour |
2
operators per shift.
|
|
Space for
Plant |
16kg-25kg/hr. |
50kg/hr. |
| |
L |
10 meter
|
15
meter |
| |
W |
4
meter
|
5
meter |
| |
H |
4 meter
|
4
meter |
|
| |
 |
| |
The
provision of water effluent treatment plant (optional) makes the
customer utilise the acidic water effluent coming from the plant.
The acidic water is neutralized, filtered and used back.
The water consumption becomes much less. If effluent treatment is
not installed then effluent has to be thrown out and water consumption
is almost 300 liter per hour. The electrical consumption is very
little in the plant. The installed load is mainly due to compressor
motor, refrigeration compressor and heaters of driers.
|
 |
| |
 |
|
| |
A cylinder testing station (optional)
can be provided to test cylinders. Similarly, a vacuum pump can
be also provided to evacuate the cylinders received from customers
which might be containing some left over impure nitrous oxide.
|
| |
 |
|
| |
A small
laboratory is a must to maintain complete analysis of batch produced
in the plant. The plant is automatic and required only 2 persons
to operate per shift besides a chemist.
|
| |
 |
|
| |

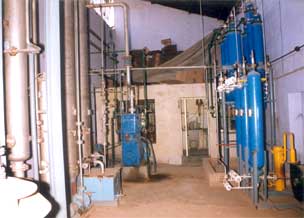

Nitrous oxide plants supplied are
have capacities from 15kg/hr, 25 kg/hr, 50kg/hr and 100kg/hr. Plants
are skids mounted to minimize erection time at site.
|
| |
 |
|
| |
Not only we install the plant but
also we train your people to become good operators to run the plant
independently. We prove the quality (after getting the gas tested
by user) quantity and fill the cylinders, and then only leave the
site.
|
| |
 |
| |
Gaslabs Asia takes into account
prevailing asian preconditions while designing it’s gas plants.
Industrial conditions are a lot different in asia than european
and american subcontinent. Considerations of floor area, labour
cost (skilled and unskilled) are never the same for asia and it
can afford maintenance, repair and a little more space for installation
in place of deploying a fully automized, disposable version of gas
plants, which may not give them the best cost-benefit ratio. Gaslabs
Asia offers the designs which are modular, making the maintenance
easy, and affordable. And automation too is chosen with care as
to what and how much might suit to particular industrial consumer
and give him maximum production mileage.
|
| |
 |
| |
We leave
ample room in plant layout and floor plan. The extra space gives
enough room to the workers and helps them into moving around freely
during plant operation-a must with a gas like N2O.
|
| |
|
| |
|
Gaslab
Asia ensures in every gas plant design that its production capacity
is used to its maximum while keeping inputs at minimum without compromising
on gas purity, which is always at par with the world standards.
Gaslabs Asia also offers maintenance and training program to its
customers while supplying all sorts of workforce to run the plant
if and when needed.
|
| |
 |
| |
- Product
purity meets world standards.
- World's
best yeild guaranteed in our plant.
- Special
safety features incorporated in the plant.
- Sub-assemblies
from world-renowned manufacturers.
- Stainless
Steel Construction.
- Decomposer
and Melter separately mounted and controlled.
- Online
moisture meter installed.
- Complete
laboratory eqiupment for testing of gas is provided with plant
as standard accessory.
- Double
drier provided.
- Skid
mounted, modular design occupies less space.
- Free
training and good after sale service.
|
|
|
|
|
